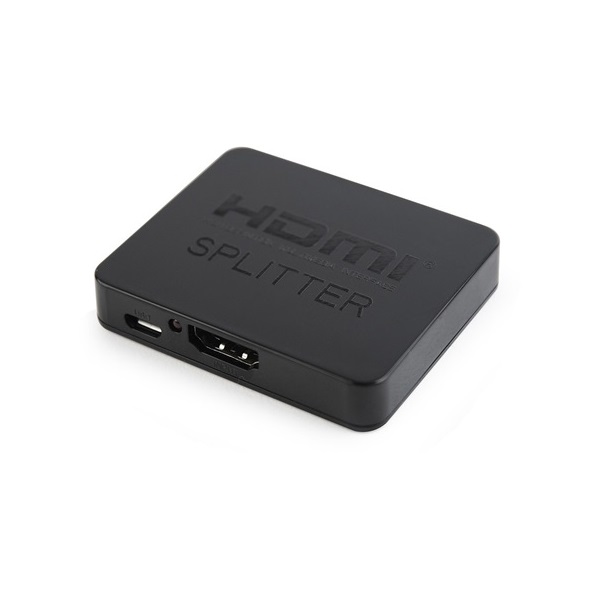

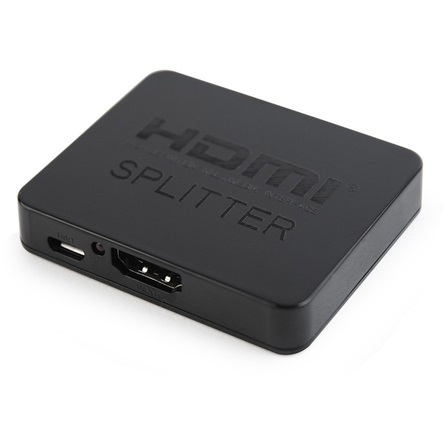

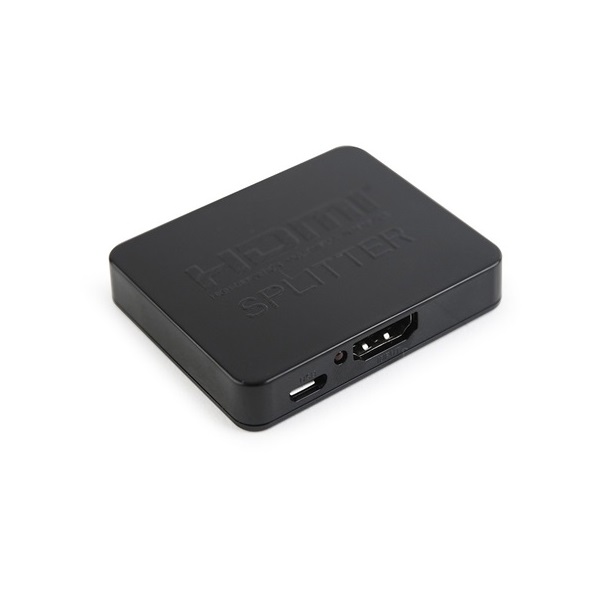

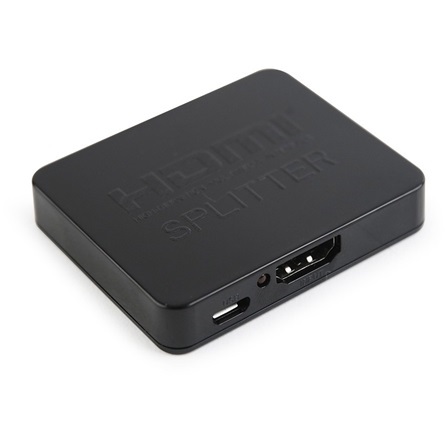

| Ports: one input receptacle, 2 output HDMI output receptacles, 19 pin (A) |
| Interface standard: HDMI + HDCP v.1.4 (compatible with all HDMI versions) |
| Video formats: HDMI (480p/576i/576p/720p/1080i/1080P) |
| Maximal single-link range: 1920x1080 pixels, 1080p |
| Dual-link range: up to 3840x2160 at 30 Hz; color 30bit, 36bit |
| Supports Blue-Ray: 24/50/60fs/HD-DVD/xvYCC, audio DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR) |
| Signal retiming support |
| Working distance: up to 20 m at AWG26 HDMI cable (at 4K resolution - 8 m input max, up to 12 m output) |
| Video amplifier: 0.5...1.0 Vp-p, up to 225 MHz bandwidth, DDC signal 5 Vp-p |
| Power adapter: 5 V DC, 1 A |
| Dimensions: 70 x 60 x 20 mm |
| Net weight: 0.12 kg |
